We are very excited to present our Sointuva speaker. Sointuva is a Finnish word meaning “musical harmony” and March Audio believes this very aptly describes the performance of the Sointuva speaker.
Our design objective was to produce a speaker that is moderate in size yet possessed exceptionally deep and warm bass, with sweet crystal clear high frequencies and very low distortion.
To achieve this objective we investigated and tested a great number of drivers, but none came close in performance to the Purifi PTT6.5X04-NFA-01. This driver is a 6.5” driver that truly cracks the extended-stroke code. PURIFI’s research has identified the parameters that have so far prevented extended stroke drivers from breaking through in truly high performance audio.
Purifi has taken care to optimize the various distortion mechanisms separately, thus guaranteeing that any measured improvement truly reflects a real audible improvement no matter what the signal is. Accurate mathematical models are developed for the motor, suspension and the vibro-acoustics of the dome and surround. These models clearly explain several distortion mechanisms in each domain, which provides fundamental insights into better ways of constructing the motor, cone and suspension. Finally, the same models are used to numerically fine-tune the geometry. This way of working reliably reduces multiple distortions mechanisms which secures low IMD for complex signals.
The combination of the above characteristics results in a compact long-stroke driver that delivers complex sound with a clarity and lack of effort that was previously the exclusive province of large-cone short-stroke drivers. Additionally, thanks to the small cone size, the driver has excellent midrange reproduction.
Dual Purifi PTT6.5PR-NF1-01 passive radiators are used to on the rear of the speaker to extend the low frequency response. They also eliminate some of the problems associated with ported designs such as port noise. They provide the tightness of bass associated with closed boxes with the added extension of ported designs.
These small speakers behave like much bigger devices and the anechoic low frequency response is only -3dB down at 42Hz. This equates to an in room response that reaches well below 30Hz. This extended response negates the need for a sub woofer when used with music.
To complement the exceptional performance of the Purfi woofer we needed an exceptional tweeter. The SB Acoustics Satori TW29BNWG Beryllium Dome Tweeter fitted the bill perfectly. Sweet and detailed with exceptional clarity and very low distortion.
The integrated waveguide controls the directivity of the tweeter allowing it to perfectly match that of the woofer at the crossover point. The controlled directivity also ensures the indirect sound from reflection’s within your room accurately match the timbre of the direct sound from the tweeter. This provides a much more cohesive sound that is more consistent in different rooms.
The crossover filter utilises high quality components including Jantzen capacitors and low loss air core inductors which minimises distortion and maximises sensitivity.
Not only did we want to provide aural harmony with the Sointuva but also aesthetic harmony.
The Sointuva is manufactured to order so the cabinets can be finished to your exact specification. We can provide paint finishes in any colour you like from the RAL colour system:
RAL Classic | RALcolorchart.com

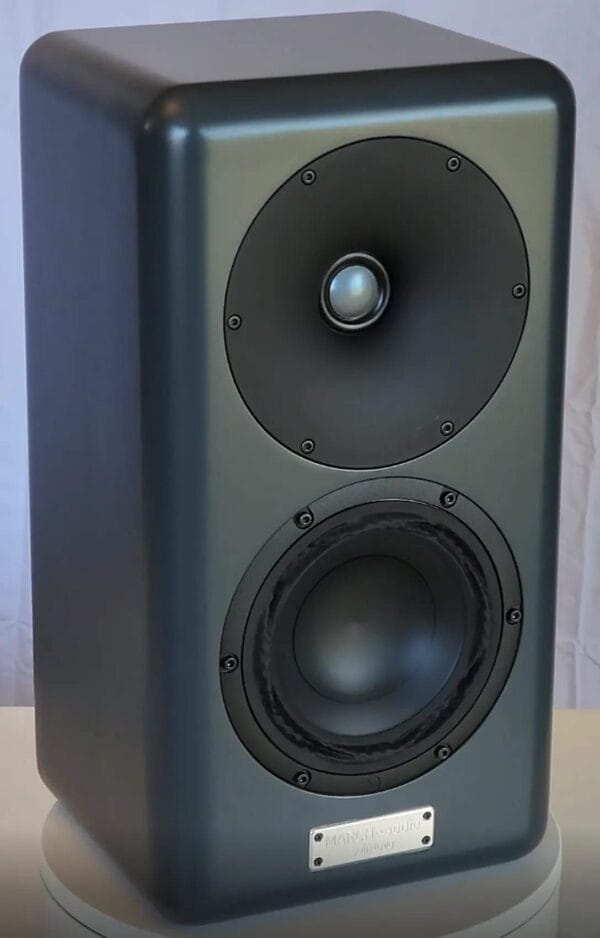

Pictured is a cabinet finished in matt anthracite grey.
We also have a range of beautiful solid wood finishes from native Australian hardwood timbers.
Pictured is a cabinet manufactured from locally sustainably sourced Australian Marri timber.
Primary woods available include:
- Jarrah – Eucalyptus marginata
- Blackbutt – Eucalyptus pilularis
- Marri – Corymbia calophylla
- Wandoo – Eucalyptus wandoo
- Sheoak – Casuarina
- Tasmanian Oak – Eucalyptus regnans
Please contact us at firstname.lastname@example.org to discuss your preferred finish.
The cabinets also perform an important function with respect to the sound quality. March Audios expertise with vibration analysis ensures the cabinets have appropriate bracing and damping to minimise colouration. The rounded edges are not just for aesthetics, they also minimise the effects of diffraction.
- Objectively speaking, I believe this is the best passive speaker I have measured to date. It rivals linearity and directivity on par with some of the best speakers I have seen.
For the technical amongst you some measurements

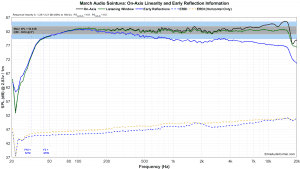

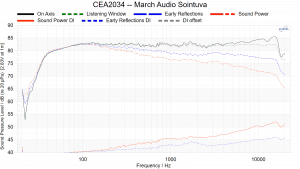

The Sointuva has extremely linear frequency response, sound power and directivity

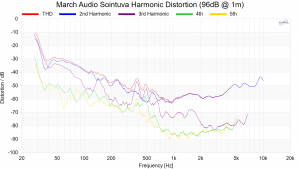

Class leading exceptionally low distortion that beats some much larger speakers

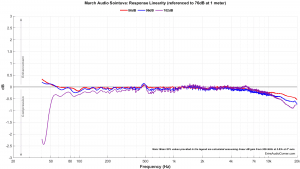

Plays loud with minimal compression that retains the musical dynamics and punch. Again surpassing the performance of many much larger speakers.
